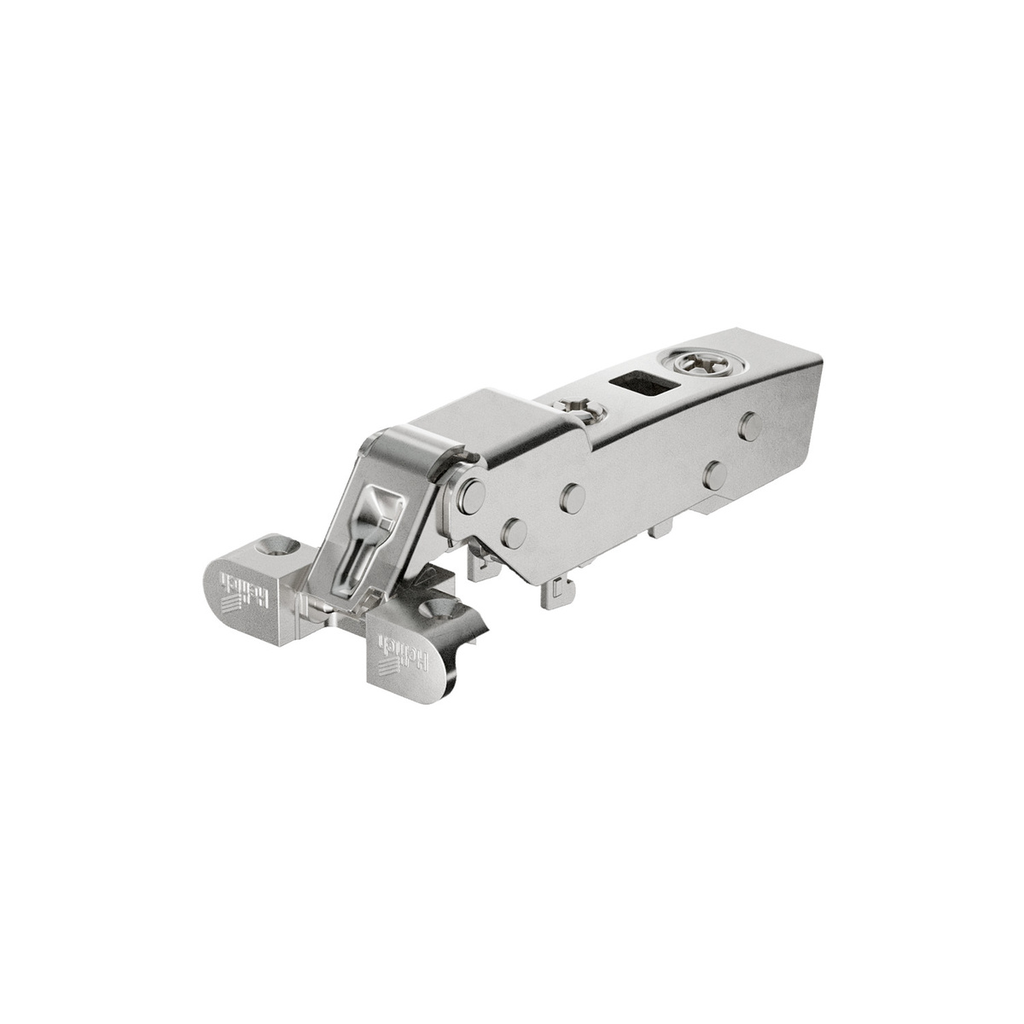

Sensys aluminium frame hinge with integrated silent system (Sensys 8638i), nickel plated, half overlay, Opening angle 95°, for screwing on (-)Article Number 9072525
Sensys aluminium frame hinge
With integrated Silent System, with self closing feature (Sensys 8638i)
Quality classification under EN 15570, Level 3
Opening angle 95°
For 19 mm wide aluminium profiles
Door mounting option half overlay (B 3 mm)
Installation for screwing on
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Including 2 fixing screws
steel / die-cast zinc nickel plated
