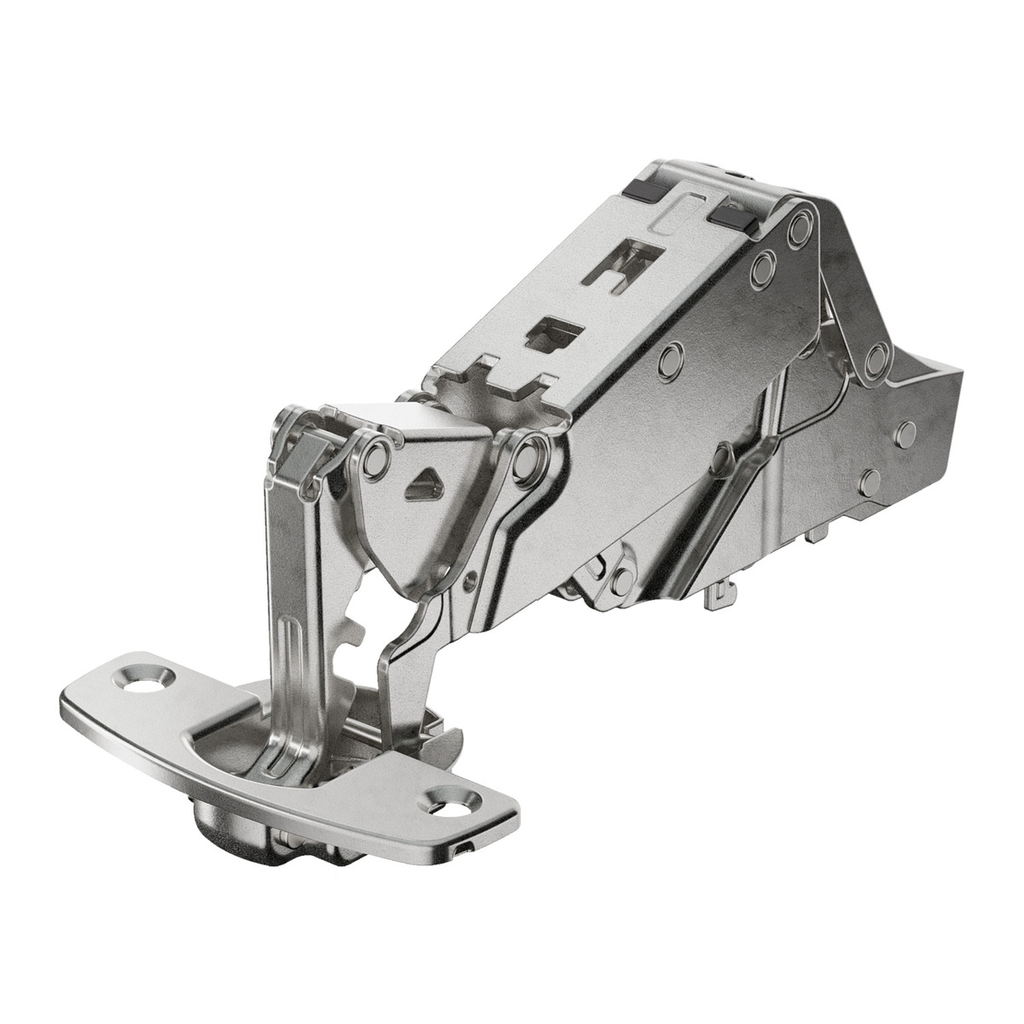

Sensys wide angle hinge, with zero protrusion, with integrated silent system (Sensys 8657i), nickel plated, half overlay, Opening angle 165°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)Article Number 9099550
Sensys wide angle hinge, with zero protrusion
With integrated Silent System, with self closing feature (Sensys 8657i)
Quality classification under EN 15570, Level 3
Opening angle 165°
For door thickness 15-32 mm
Door mounting option half overlay (B 3 mm)
TH - drilling pattern 52 x 5.5 mm
Cup depth 11.6 mm
Installation for screwing on (TH 52)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
steel / die-cast zinc nickel plated
